DIMENSION

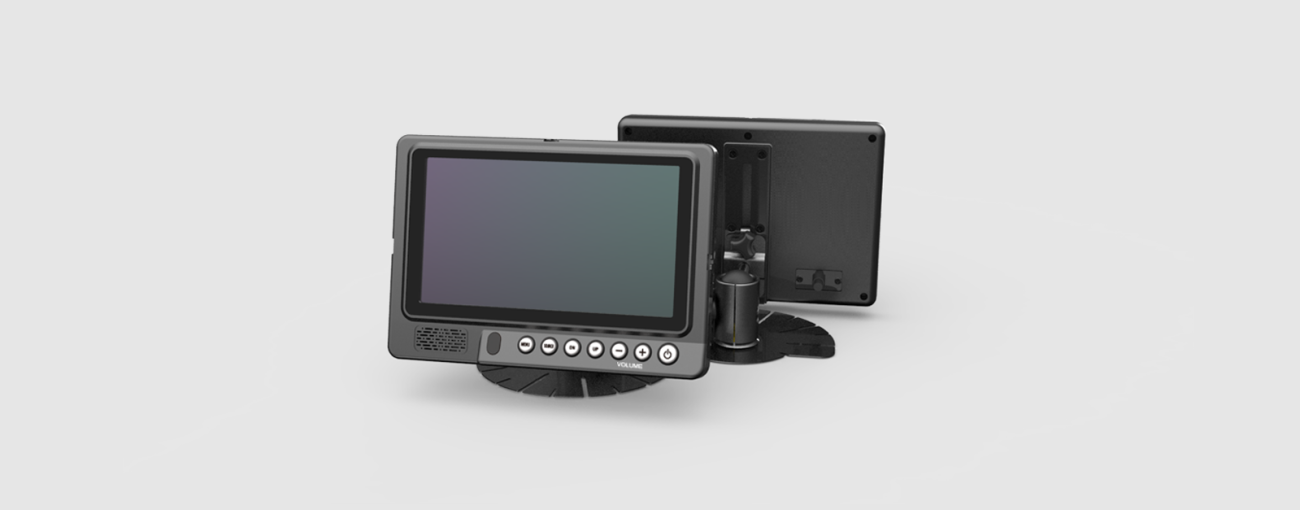

SPECIFICATION - MONITOR
|
Power Input |
DC 12V (from Control Box) |
|
Video System |
NTSC / PAL compatible |
|
Panel |
7 Inch Digital |
| Panel Ratio | 16:9 |
| Panel Brightness | 500cd/㎡ |
| Panel Resolution | 800(H) × 3(RGB) × 480(V) pixels |
|
Display Mode |
Single, Split, Triple, Quad, PIP |
| Camera Input (2 Channel) | Mini 4Pin DIN or 4Pin IP Connector (1Vp-p 75Ω) |
| Operating Temperature | -30℃ ~ 75℃ (-22°F ~ 167°F) |
| IP Rating | IP65 |
| Vibration | 7G |
| Weight | 590g (Monitor Only) |
| Dimensions | 197(W) × 138(H) × 32(D) mm |
| 7.7(W) × 5.4(H) × 1.2(D) inch | |
| OSG Control ※ Individual Control per Channel available |
Day and Night Sensor Speed Switch Bright, Contrast, Color, Tint Adjust Mirror / Normal, Up / Down, Day / Night Mode |
SPECIFICATION - CONTROL BOX
|
Power Input |
DC 10V ~ 32V |
| Power Consumption | Max 24 Watt |
|
Video System |
NTSC / PAL compatible |
|
Camera Input |
Mini 4Pin DIN or 4Pin IP Connector (1Vp-p 75Ω) |
| A/V Output | RCA, Composite Video Signal (1Vp-p 75Ω) RCA, Audio Signal, 150mV RMS, 47KΩ |
| A/V Input | RCA, Composite Video Signal (1Vp-p 75Ω) RCA, Audio Signal, 150mV RMS |
| Operating Temperature | -30℃ ~ 75℃ (-22°F ~ 167°F) |
| Amvient Condition | Indoor Use Only |
| Weight | 500g (Control Box Only) |
| Dimensions | 131(W) × 105(H) × 29(D) mm |
| 6.1(W) × 4.1(H) × 1.1(D) inch |
