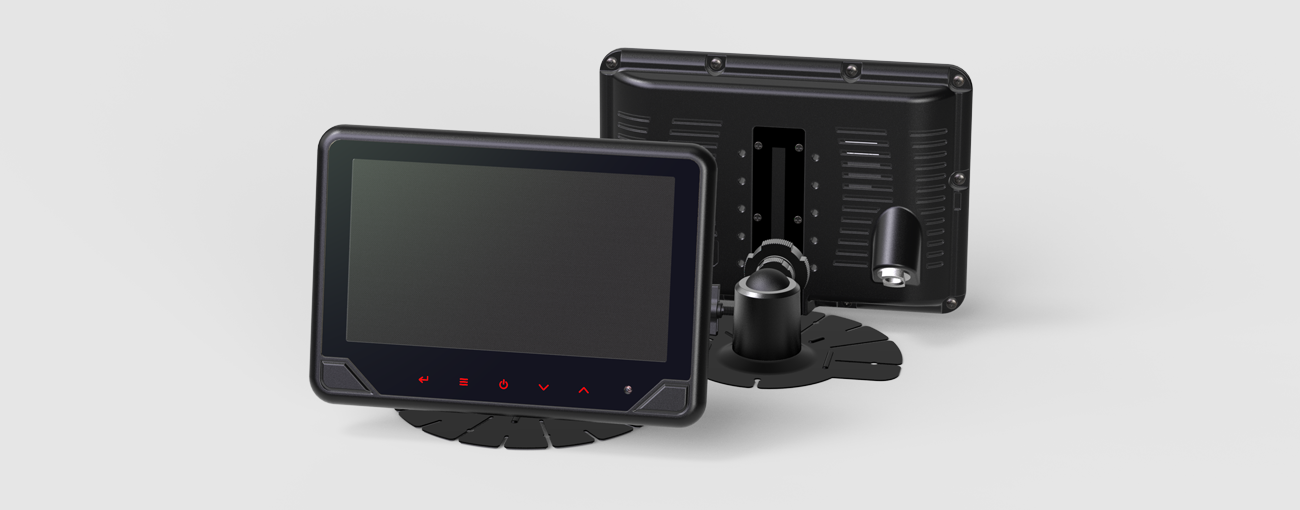

    ECL-7WQ






    A·HD Monitor

    • 7 Inch Digital LCD Panel
    • Auto NTSC / PAL / A·HD Detection
    • Auto Day and Night Detection
    • Support Normal, Shutter, Tilt Camera
    • Operating Temperature -40℃ ~ 85℃ (-40°F ~ 185°F)
    • Built in Speaker





    DIMENSION









    SPECIFICATION



     Power Input

     DC 10V ~ 32V

     Power Consumption

     Max 15 Watt

     Video System

     NTSC / PAL, A·HD compatible

     Panel

     7 Inch Digital
     Panel Ratio  16:9
     Panel Brightness  700cd/㎡
     Panel Resolution  1024(H) × 3(RGB) × 600(V) pixels

     Display Mode

     Single / Split / Triple / Quad
     Camera Input (4 Channel)  Mini 4Pin DIN or 4Pin IP Connector (1Vp-p 75Ω)
     Operating Temperature  -40℃ ~ 85℃ (-40°F ~ 185°F)
     IP Rating  IP69K
     Vibration  10G
     Weight  790g (Monitor Only)
     Dimensions  193(W) × 135(H) × 49(D) mm
     7.6(W) × 5.3(H) × 1.9(D) inch
     OSG Control
     ※ Individual Control per Channel available    		  Day and Night Sensor
     Speed Switch
     Night Brightness
     Auto Scan
     Bright, Contrast, Color, Tint Adjust
     Mirror / Normal, Up / Down, Day / Night Mode
