vehicles

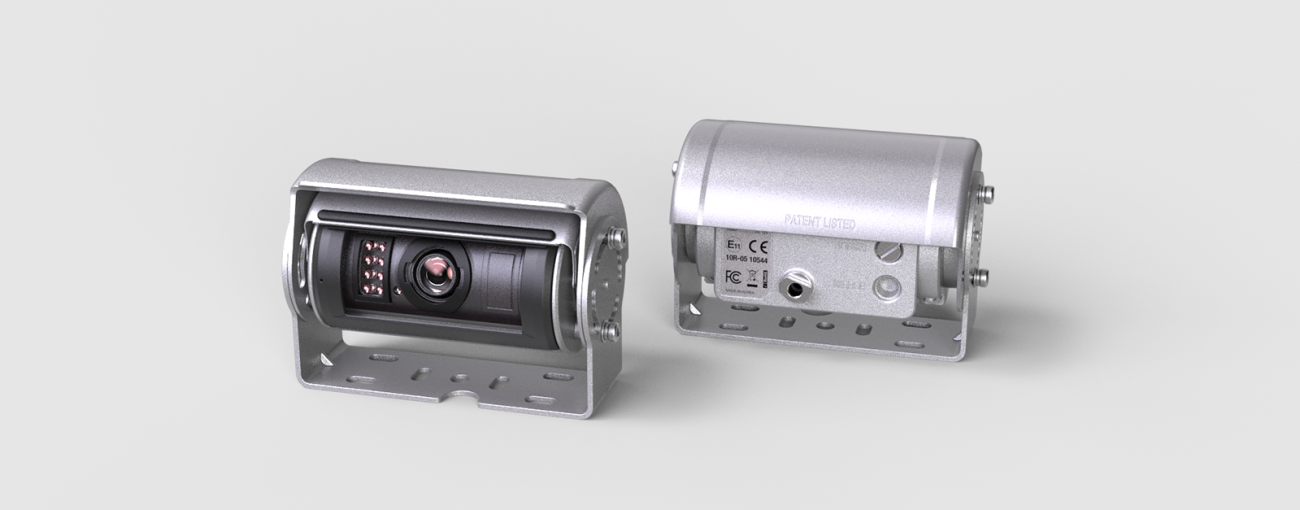

Motorized Shutter Camera
Auto Cleaning Function
DIMENSION
SPECIFICATION
|
Image Type |
2.1 Mega Pixels CMOS Sensor |
|
Image Size |
1/3.2 Inch |
|
Angle of View |
Diagonal Angle : 140º (Degree) |
|
Horizontal Angle : 120º (Degree) |
|
|
Vertical Angle : 60º (Degree) |
|
|
Synchronization |
Internal |
| Horizontal Resolution | More than 700TV Lines (CVBS) More than 1,000TV Lines (A·HD) |
| Minimum Illumination | 0 Lux without IR LED |
| Signal to Noise Ratio | Better than 50dB(at AGC off) |
|
Power Input |
DC 12V |
| Operating Temperature | -40℃ ~ 85℃ (-40°F ~ 185°F) |
| IP Rating | IP69K |
| Vibration | 10G |
| Housing | Window : Curved Glass Body : Aluminium |
| Weight | 370g (Camera Only) |
| Dimensions | 104(W) × 55(H) × 63(D)mm |
