vehicles
Super Power IR LED
10x Zoom Function
Defog Function

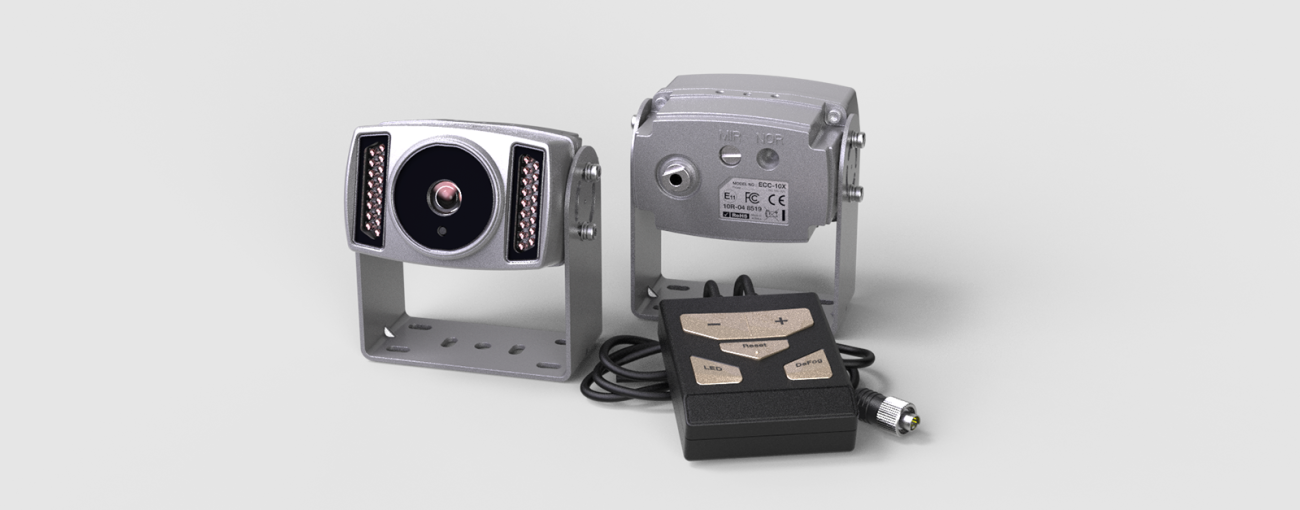

Night Vision Camera

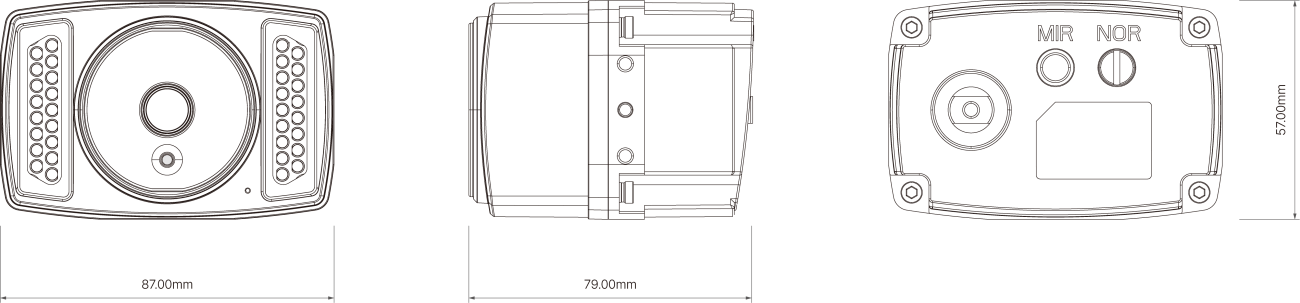

DIMENSION
SPECIFICATION
|
Image Type |
NTSC : 520K Pixel CCD Sensor PAL : 610K Pixel CCD Sensor |
|
Image Size |
1/2.8 Inch |
|
Angle of View |
Diagonal Angle : 20º (Degree) |
|
Horizontal Angle : 16º (Degree) |
|
|
Vertical Angle : 12º (Degree) |
|
|
Synchronization |
Internal |
| Horizontal Resolution | More than 600TV Lines (CVBS) More than 650TV Lines (A·HD) |
| Minimum Illumination | 0 Lux without IR LED |
| Signal to Noise Ratio | Better than 50dB(at AGC off) |
|
Power Input |
DC 10V ~ 32V |
| Operating Temperature | -40℃ ~ 85℃ (-40°F ~ 185°F) |
| IP Rating | IP69K |
| Vibration | 10G |
| Housing | Window : Flat Glass Body : Aluminium |
| Weight | 400g (Camera Only) |
| Dimensions | 87(W) × 57(H) × 79(D)mm |
Download Leaflet
