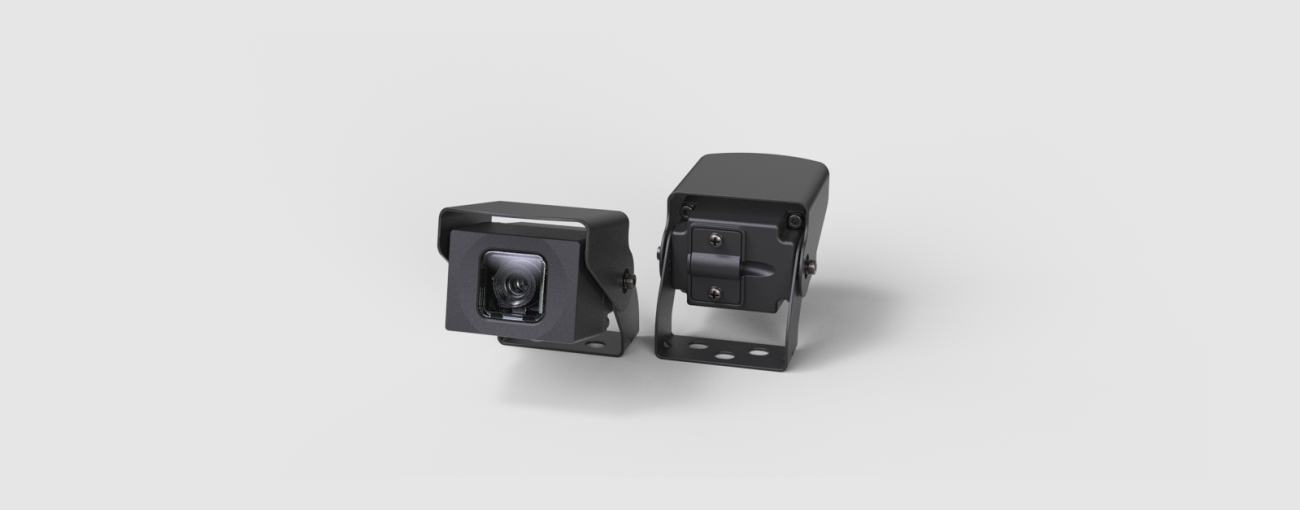

Compact Size Camera
DIMENSION
SPECIFICATION
|
Image Type |
1.23 Mega Pixels CMOS Sensor |
|
Image Size |
1/3.2 Inch |
|
Angle of View (A·HD / CVBS) |
Diagonal Angle : 130º / 145º (Degree) |
|
Horizontal Angle : 112º / 112º (Degree) |
|
|
Vertical Angle : 63º / 82º (Degree) |
|
|
Synchronization |
Internal |
| Horizontal Resolution | More than 700TV Lines (CVBS) More than 1,000TV Lines (A·HD) |
| Minimum Illumination | (Min.) 0.1 Lux |
| Signal to Noise Ratio | Better than 50dB(at AGC off) |
|
Power Input |
DC 12V |
| Operating Temperature | -40℃ ~ 85℃ (-40°F ~ 185°F) |
| IP Rating | IP68 |
| Vibration | 7G |
| Housing | Window : Plastic Body : Aluminium |
| Weight | 80g (Camera Only) |
| Dimensions | 33(W) × 25(H) × 38(D)mm |
