vehicles

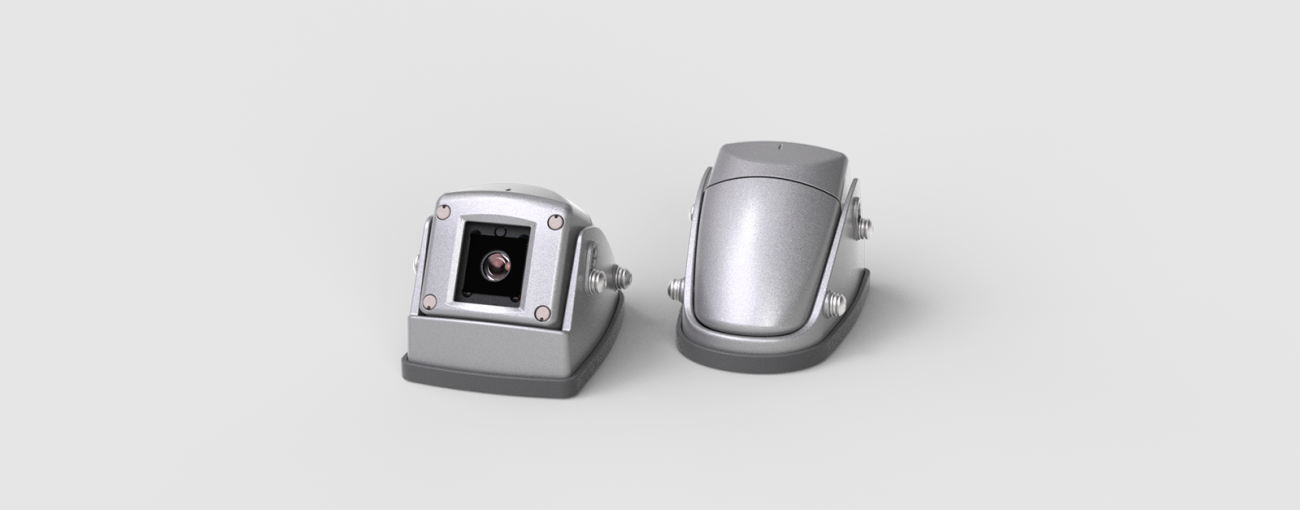

◾Side View Camera
SPECIFICATION
|
Image Type |
1.23 Mega Pixels CMOS Sensor |
|
Image Size |
1/3.2 Inch |
|
Angle of View (A·HD / CVBS) |
Diagonal Angle : 117º / 120º (Degree) |
|
Horizontal Angle : 100º / 96º (Degree) |
|
|
Vertical Angle : 62º / 76º (Degree) |
|
|
Synchronization |
Internal |
| Horizontal Resolution | More than 700TV Lines (CVBS) More than 1,000TV Lines (A·HD) |
| Minimum Illumination | 0 Lux without IR LED |
| Signal to Noise Ratio | Better than 50dB(at AGC off) |
|
Power Input |
DC 12V |
| Operating Temperature | -40℃ ~ 85℃ (-40°F ~ 185°F) |
| IP Rating | IP69K |
| Vibration | 10G |
| Housing | Camera Window : Flat Glass Body : Aluminium |
| Weight | 170g (Camera Only) |
| Dimensions | 45(W) × 47(H) × 81(D)mm |
Download Leaflet
