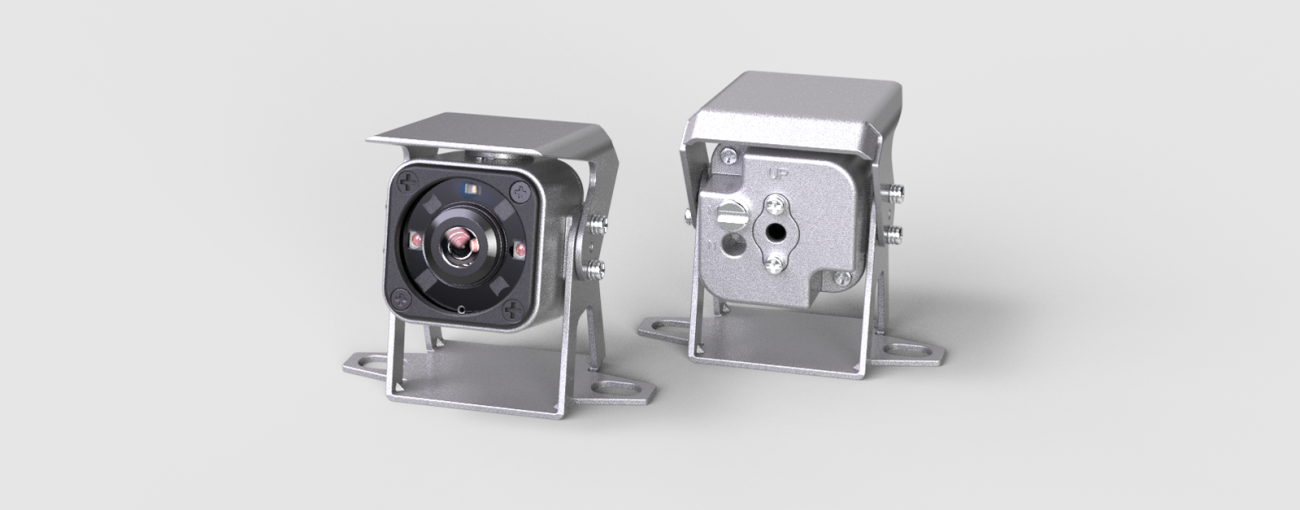

    ECC-MS20A








    • ▪️ 1.23 M Pixel CMOS Camera
    • ▪️ 120º Diagonal Angle of View
    • ▪️ Good Performance in Low Light Condition
    • ▪️ Operating Temperature -40℃ ~ 85℃ (-40°F ~ 185°F)
    • ▪️ Built in Microphone






    DIMENSION















    SPECIFICATION



     Image Type

     1.23 Mega Pixels CMOS Sensor

     Image Size

     1/3.2 Inch

     Angle of View

     ▪️ ECC-MS20AC (CVBS)

    Diagonal Angle : 120º (Degree)

    Horizontal Angle : 96º (Degree)

    Vertical Angle : 76º (Degree)

     ▪️ ECC-MS20AD (A·HD)

    Diagonal Angle : 117º (Degree)

    Horizontal Angle : 100º (Degree)

    Vertical Angle : 62º (Degree)

     Synchronization

     Internal
     Horizontal Resolution  More than 700TV Lines (CVBS)
     More than 1,000TV Lines (A·HD)
     Minimum Illumination   0 Lux without IR LED
     Signal to Noise Ratio  Better than 50dB (at AGC off)

     Power Input

     DC 12V
     Operating Temperature  -40℃ ~ 85℃ (-40°F ~ 185°F)
     IP Rating  IP69K
     Vibration  10G
     Housing  Window : Flat Glass
     Body : Zinc
     Weight  107g (Camera Only)
     Dimensions  30(W) × 30(H) × 39(D)mm
