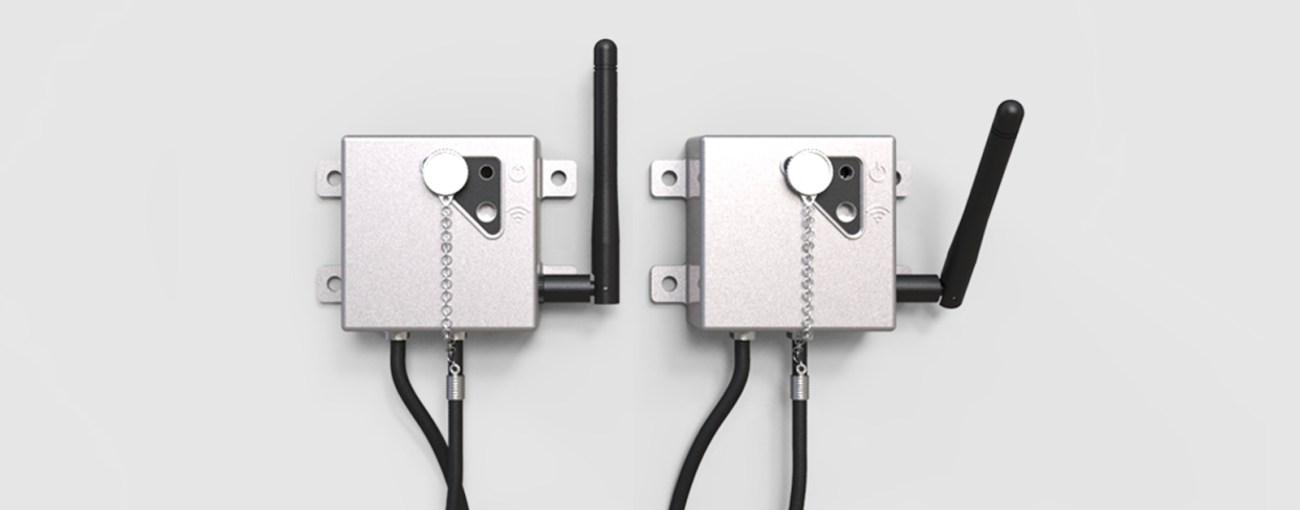

    EWS-10








    ◾Stand Alone Wireless System

    • ▪️ Low Latency Transmission (≒100ms)
    • ▪️ Low Delay on Start Up
    • ▪️ Auto / Manual Pairing (Magnet, Wire)
    • ▪️ Anti Communication Interrupt
    • ▪️ Vandal Resistance (Aluminium)
    • ▪️ Intelligent Frequency Hopping Tech on FHSS
    • ▪️ Wide Range Power Input DC 10V ~ 32V
    • ▪️ Operating Tempurature -40℃ ~ 85℃ (-40°F ~ 185°F)





    DIMENSION



    EWS-10_D








    SPECIFICATION



     Operating Frequency

     2.4095 GHz ~ 2.4696 GHz ISM band

     Data Rate

     4 Mbps (Max)
     Transmission Distance

     200m (at Open Space)

     Frame Rate

     Up to 25fps at 720 x 576 (PAL)

     Up to 30fps at 720 x 480 (NTSC)
     Type of Spread Spectrum  FHSS
     Receiving Sensitivity  -85 dBm
     Video Compression Format  MPEG4
     Transmission power  19 dBm
     Latency  Average 100ms
     Power Input  DC 10V ~ 32V
     Power Consumption  Max. 5 Watt
     Operating Temp.  -40℃ ~ 85℃ (-40°F ~ 185°F)
     Vibration  10G
     IP Rating   IP69K
     Weight  TX (Transmitter) : Approx. 320g
     RX (Receiver) : Approx : 320g
